Product parameters

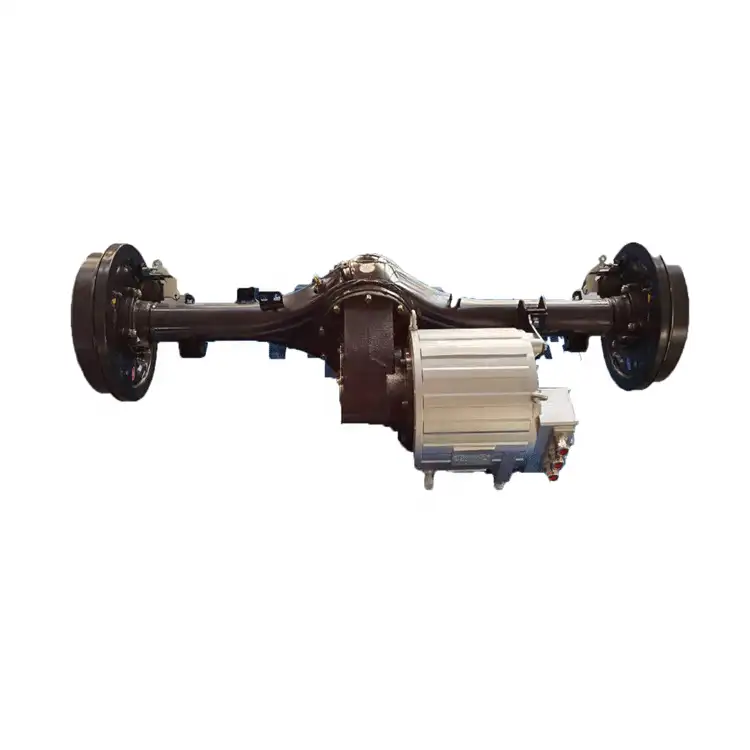

This 74kw EV Rear Axle Kit is the ideal solution for light truck conversion. It delivers superior efficiency and reliability, with up to 20% less energy consumption compared to traditional internal combustion engines. It's a reliable and affordable option for a successful EV conversion.
| Electric Portal Axle for 5T Truck | |
| Application | Tourist buses, light-duty trucks |
| Motor Type | PMSM |
| Motor Rated/Peak Power | 2×37/2×74 |
| Motor Rated/Peak Torque | 2×126/2x382N.m |
| Motor Peak Speed | 10000rpm |
| Rated Voltage | 540V |
| System Gear Ratio | 10.63 |
| System Peak Torque | 4200Nm |
| System Peak Speed | 940rpm |
| Tire Size | 215/75R17.5 |
| Rim Size | 17.5 inch |
| Brake | Hydraulic disc brake |
| Weight | 550kg |
| Protection | IP67 |
| Rated Axle Load | 5000kg |
