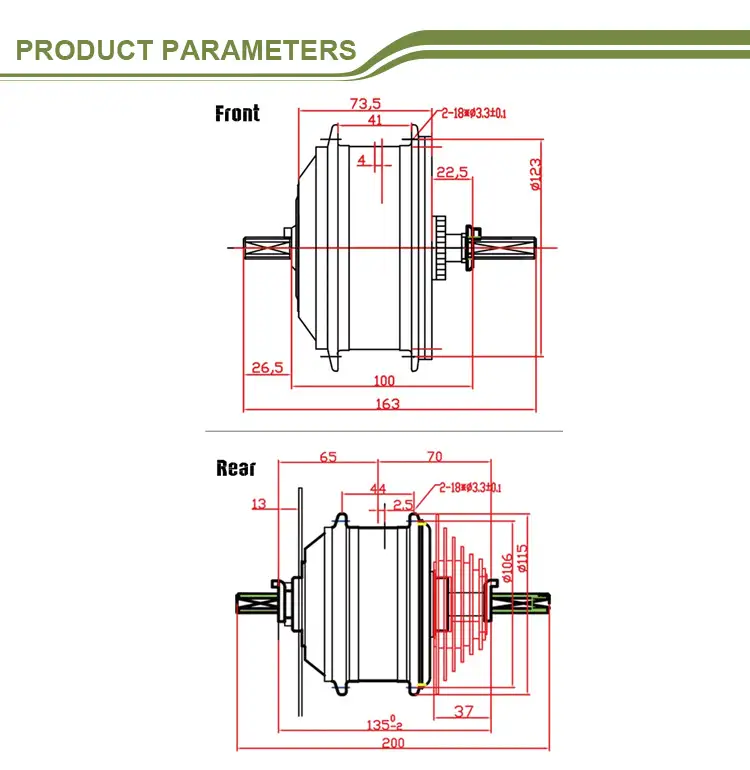

Product parameters
Introducing the 36V 250W electric bicycle brushless geared hub motor for ebike. With a maximum speed of 28 mph and a torque of up to 25N.m, this motor boosts your riding experience for an effortless ride. Enjoy power-assisted cycling and spike your performance with this sleek, efficient motor.
| Main Parameters | |
| Motor Type | Brushless Geared Hub Motor |
| Rated voltage | 24/36/48V |
| Rated power | 180/250/350W |
| Wheel size | 16-29" |
| Rated Speed | 25-28km/h |
| Rated Efficiency | >=85% |
| Reduction Ratio | 1:4.4 |
| Dropout size | 100-135mm |
| Max torque | 15-18N.m |
| nT(Rpm) | 220±10 |
| Spoke Specification | 12/13g |
| Noise Grade | <50db |
| Waterproof Grade | IP54 |
