Product parameters

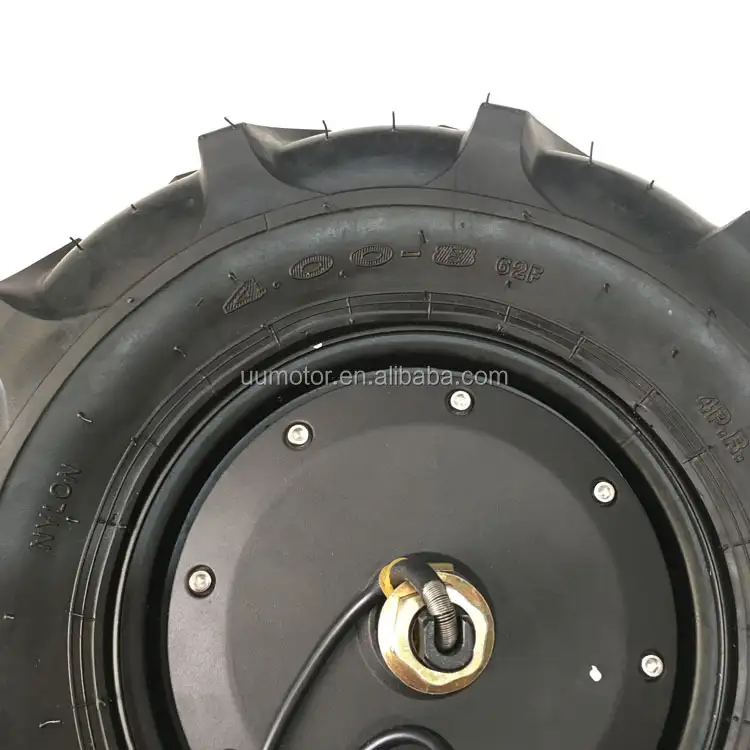

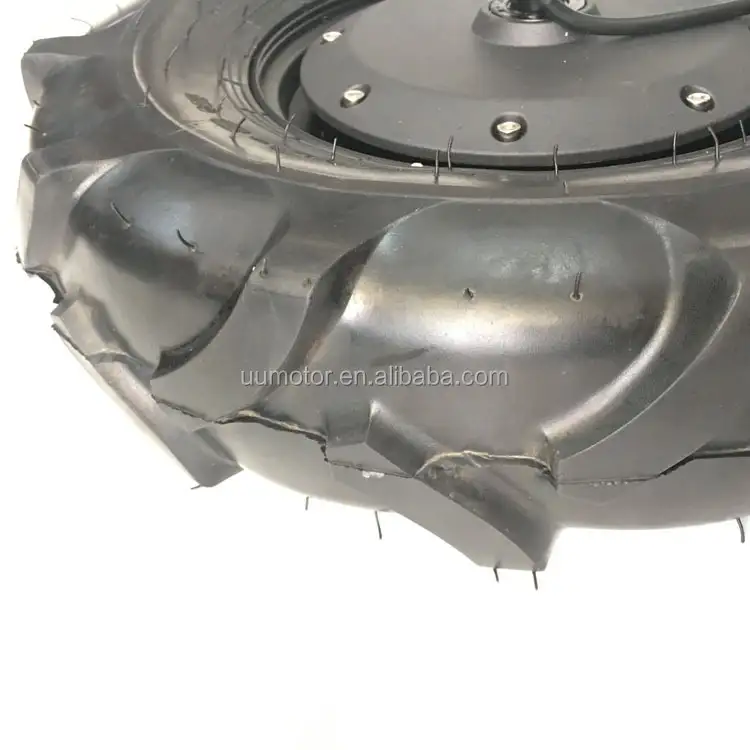

This 16" tractor road tire single shaft servo robot hub motor has a 250kg maximum load capacity and a powerful 1200w brushless DC motor for smooth, reliable operation. With its long-lasting design and robust construction, this motor is ideal for heavy-duty applications.
| Rated voltage | 48V-72V |
| Motor weight | 7.6kg |
| Rated Power | 500w-1200w |
| Rated speed | 200-500RPM |
| Rated torque | 45N.m(peak torque:95N.m) |
| rated current | 10-25A(peak 55A) |
| pole pairs | 15 pairs |
| max load | 250kg |

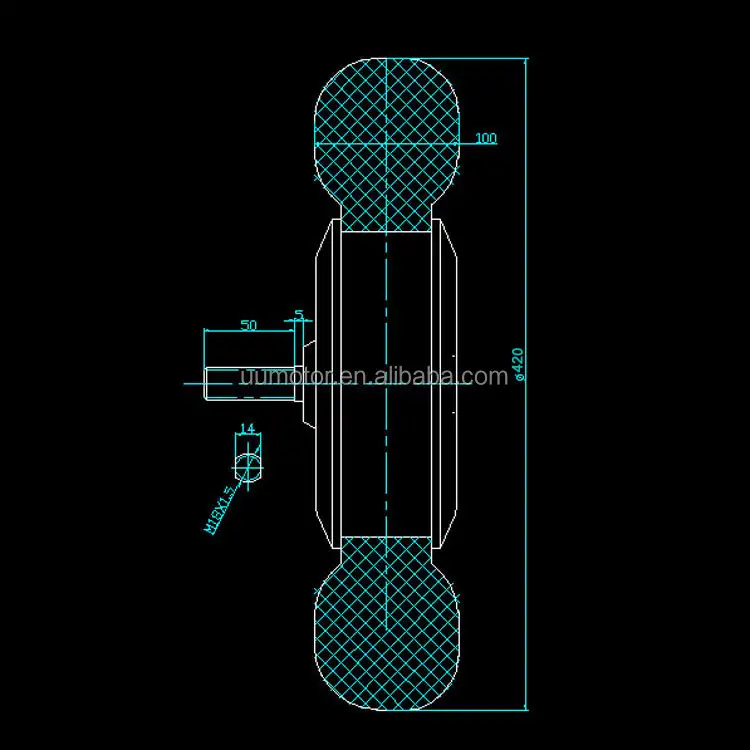

| motor diameter | 380mm |
